功能：将功放机扬声器输出端口高电平转为线路输出或者麦克风电平信号。
内部采用坡莫合金隔离变压器，频响好抗干扰
转换后的线路输出低电平信号可接有源低音炮，调音台，功放机或者其他音频设备线路输入接口；
转换后的麦克风输出低电平信号可接调音台、声卡或者其他音频设备的麦克风输入接口；
输入接口：螺钉插拔式接线端子；
线路输出接口：RCA莲花接口；
麦克风输出接口：3.5mm；
频率响应：40HZ-20KHZ
输入信号电压范围：4Ω/1W 8Ω/0.5W 2V至4Ω/100W 8Ω/50W 20V
衰减量：线路输出端：-7db至-33db可调；
麦克风输出端：-28db至-43db可调；
Function：

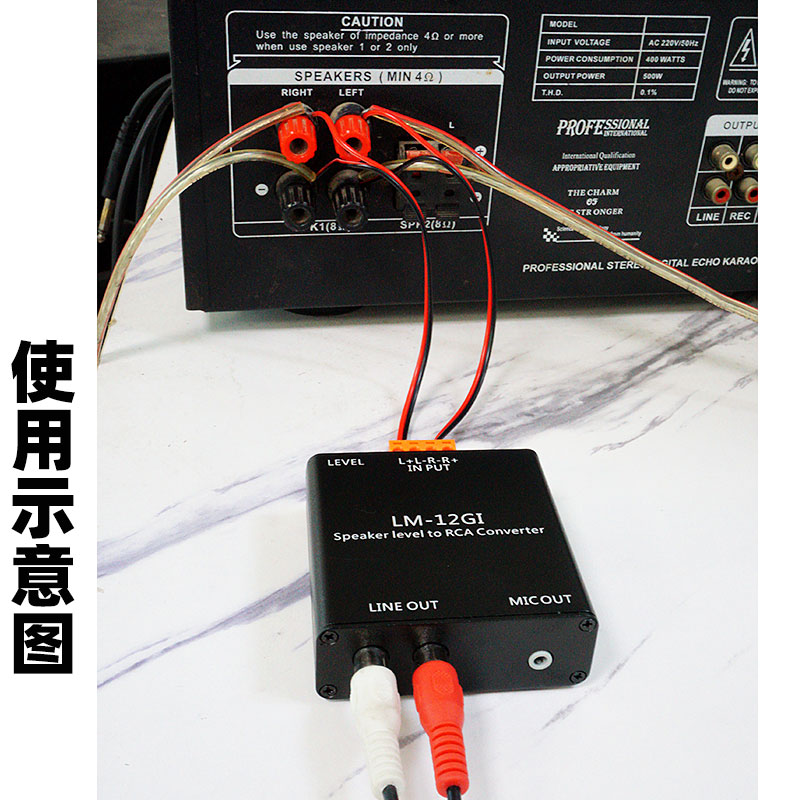

Convert the high-level signal from the power amplifier's speaker output port into a line output or microphone-level signal.
It uses a permalloy isolation transformer internally, which delivers excellent frequency response and anti-interference performance.
The converted low-level line output signal can be connected to the line input interfaces of active subwoofers, mixers, power amplifiers, or other audio devices.
The converted low-level microphone output signal can be connected to the microphone input interfaces of mixers, sound cards, or other audio devices.
Interfaces & Technical Parameters

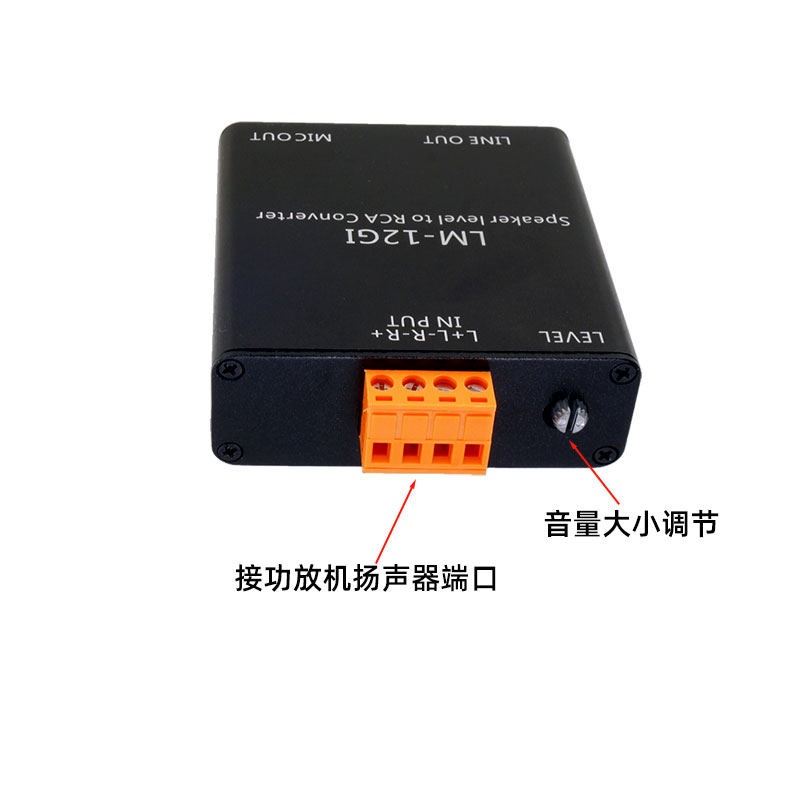

Input Interface: Screw plug-in terminal block

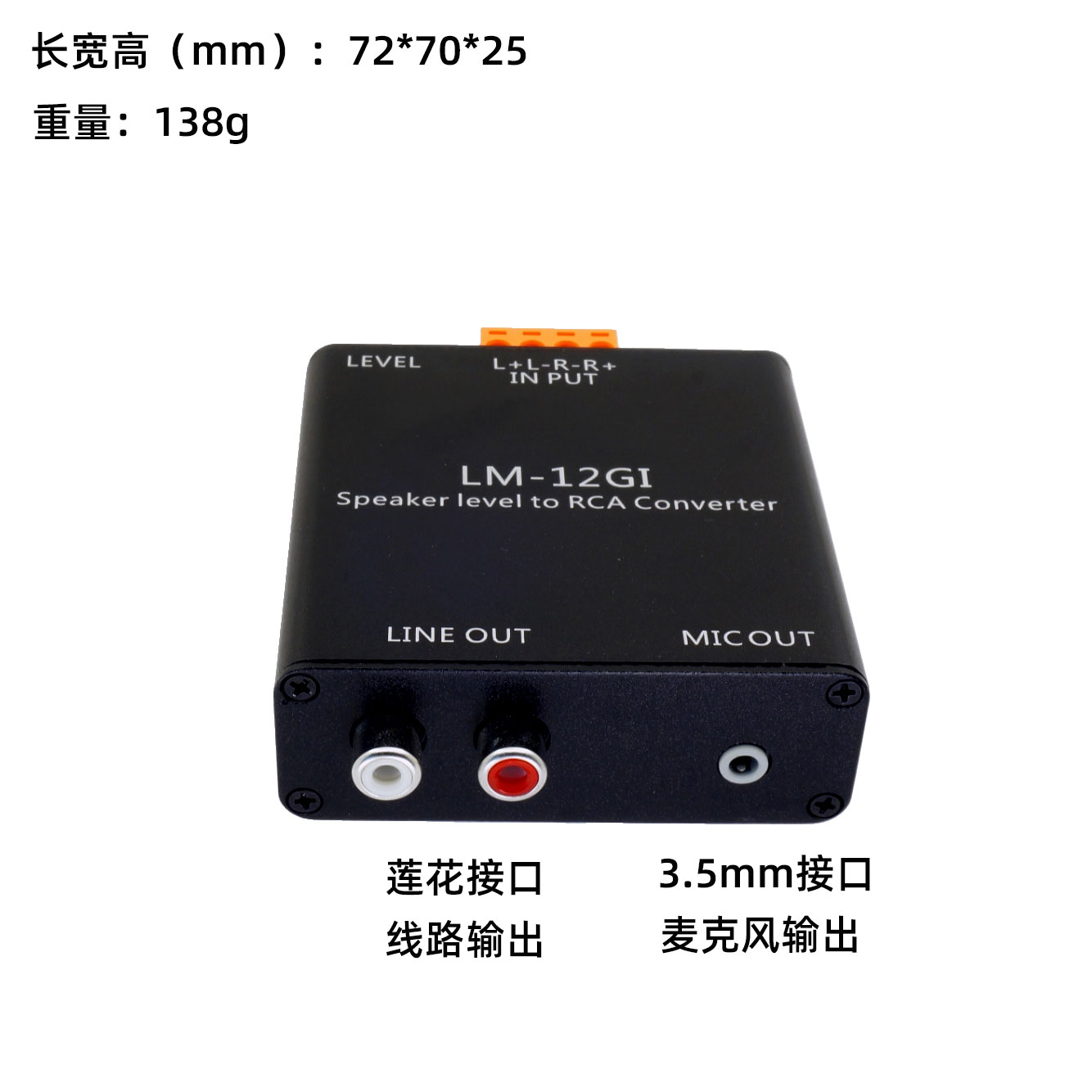

Line Output Interface: RCA phono interface
Microphone Output Interface: 3.5mm
Frequency response: 40HZ-20KHZ
Input Signal Voltage Range: 4Ω/1W, 8Ω/0.5W (2V) to 4Ω/100W, 8Ω/50W (20V)
Attenuation:
Line Output: Adjustable from -7dB to -33dB
Microphone Output: Adjustable from -28dB to -43dB
