BT-3C 立体声三进一出混音器 带蓝牙接收 Stereo three-channel mixer with Bluetooth

频道:产品说明书 日期: 浏览:206

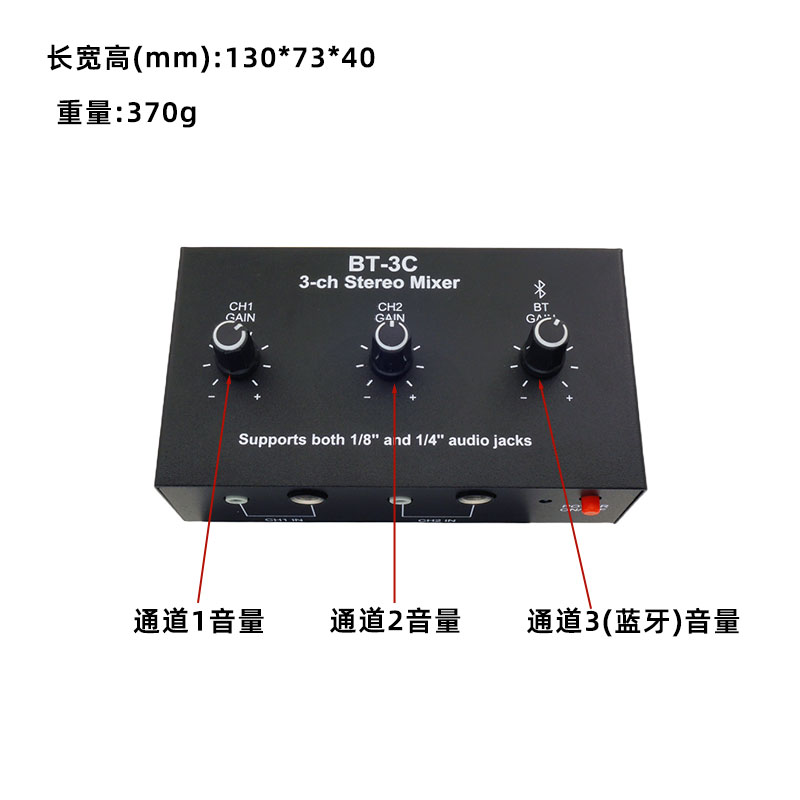

立体声二路有线输入,一路蓝牙音频无线输入,三路混合输入,每一路音量可独立调节;

输入支持音频信号、乐器、动圈麦克风;

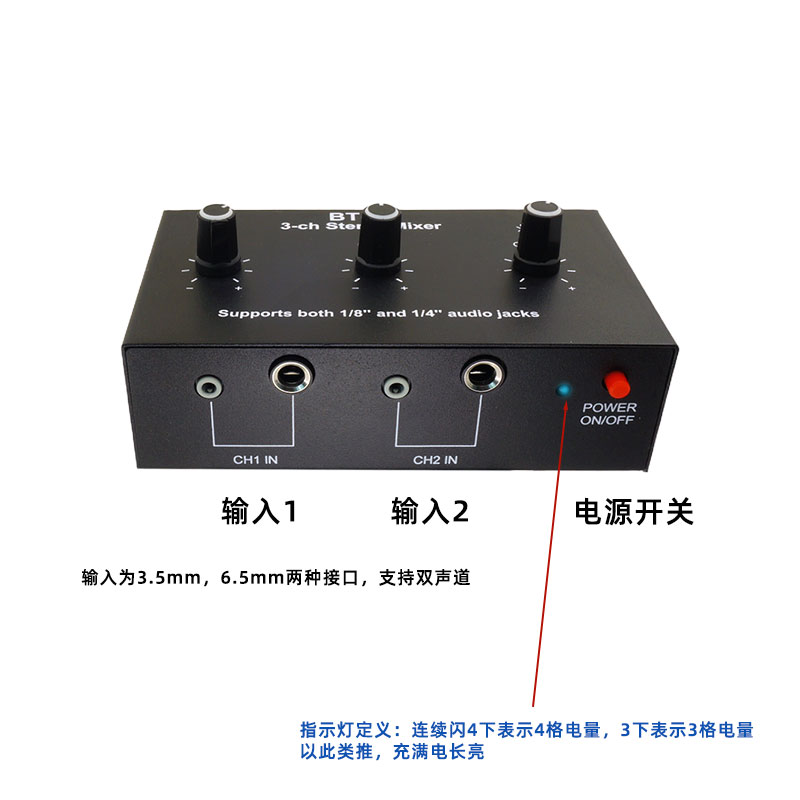

输入接口:立体声3.5mm,6.5mm

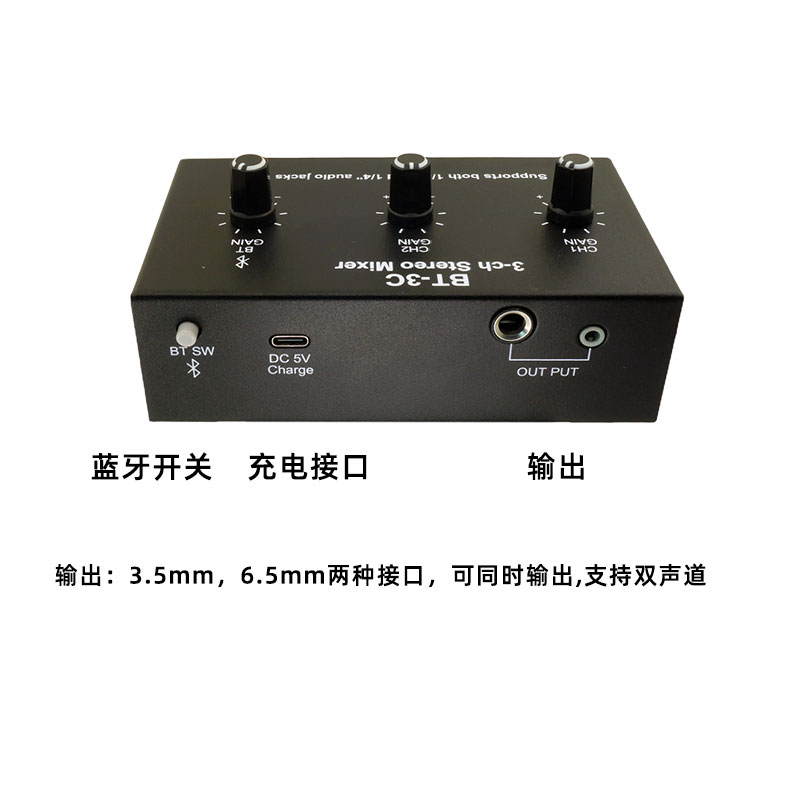

输出接口:立体声3.5mm,6.5mm

频率响应:20HZ-20KHZ

输入阻抗:22KΩ

输出阻抗:600Ω

增益:12db

蓝牙名称:BT-GDY

蓝牙版本:5.4

电池型号:18650(可拆卸)

电池容量:2000mah

续航时间约:15小时

指示灯状态:连续闪4下表示4格电量,3下表示3格电量,2下表示2格电量,1下表示1格电量,充满电灯常亮。


- Stereo 2-channel wired input, 1-channel Bluetooth audio wireless input, 3-channel mixed input, with independent volume control for each channel;

- Input supports audio signals, instruments, and dynamic microphones;

- Input interfaces: Stereo 1/8'', 1/4'' TRS;

- Output interfaces: Stereo 1/8'', 1/4'' TRS;

- Frequency response: 20Hz–20kHz;

- Input impedance: 22kΩ;

- Output impedance: 600Ω;

Bluetooth name: BT-GDY

- Gain: 12dB;

- Bluetooth version: 5.4;

- Battery model: 18650 (removable);

- Battery capacity: 2000mAh;

- Playback time: Approx. 15 hours;

- LED indicator status: 4 consecutive flashes indicate 4 bars of battery, 3 flashes indicate 3 bars, 2 flashes indicate 2 bars, 1 flash indicates 1 bar; light stays on when fully charged.
