PM-1压电拾音放大器 Piezo Pickup Preamplifiers

频道:产品说明书 日期: 浏览:698

适用于贴片压电型拾音器;

本机为JFET高阻抗电荷型放大电路,不受输入线长的影响,没有摩擦效应;

内置锂电池可充电,充一次电可适用于10个小时,可以用自己的手机充电头进行充电;

充电接口:TYPE C DC5V

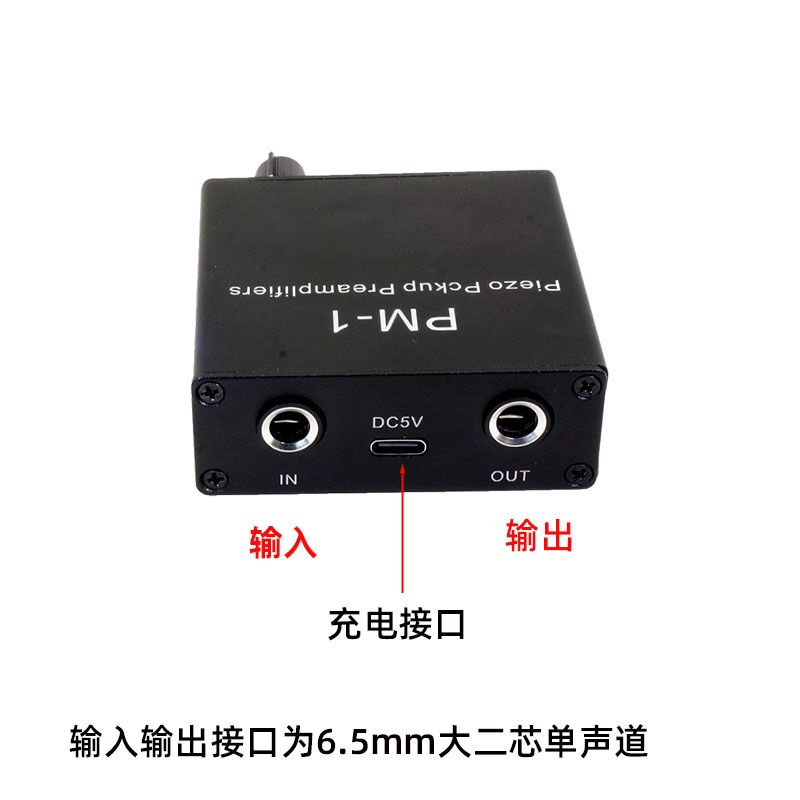

输入输出接口,6.5mm大二芯单声道;

增益:拾音器电容值为10nf时,约为20db;

输入阻抗,大于10MΩ

输出阻抗:600Ω


Suitable for surface mounted Piezo Pickup;

This machine is a JFET high impedance charge type amplifier circuit, which is not affected by the length of the input line and has no friction effect;

The built-in lithium battery is rechargeable and can last for 10 hours on a single charge.

Charging interface: TYPE C DC5V

Input/output :6.35mm  1/4 TS

Gain: When the capacitance value of the Piezo Pickup is 10nf, it is about 20db

Input impedance, greater than 10M Ω

Output impedance: 600 Ω
